商品の詳細:
|
| 製品名: | ネジ付き格納式ドリルビット | キーワード: | 石の穴あけ工具 |
|---|---|---|---|
| Diamete: | 76 | 色: | 青、黄、黒 |
| 使用法: | 鉱山、トンネルサポート | 材料: | 45GrMo+YK05 |
| ハイライト: | 89mm threaded drill rod,T45 rock drilling tools,mine tunneling drill rod |
||
T45 89mm Threaded Drill Rod Rock Drilling Tools For Mine Tunneling Operation

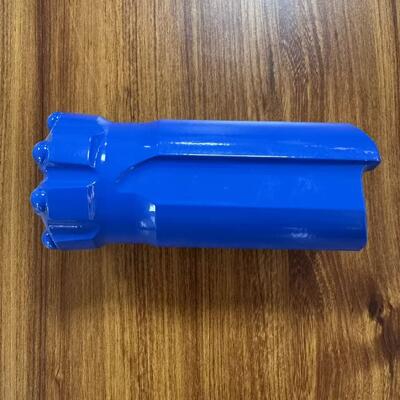

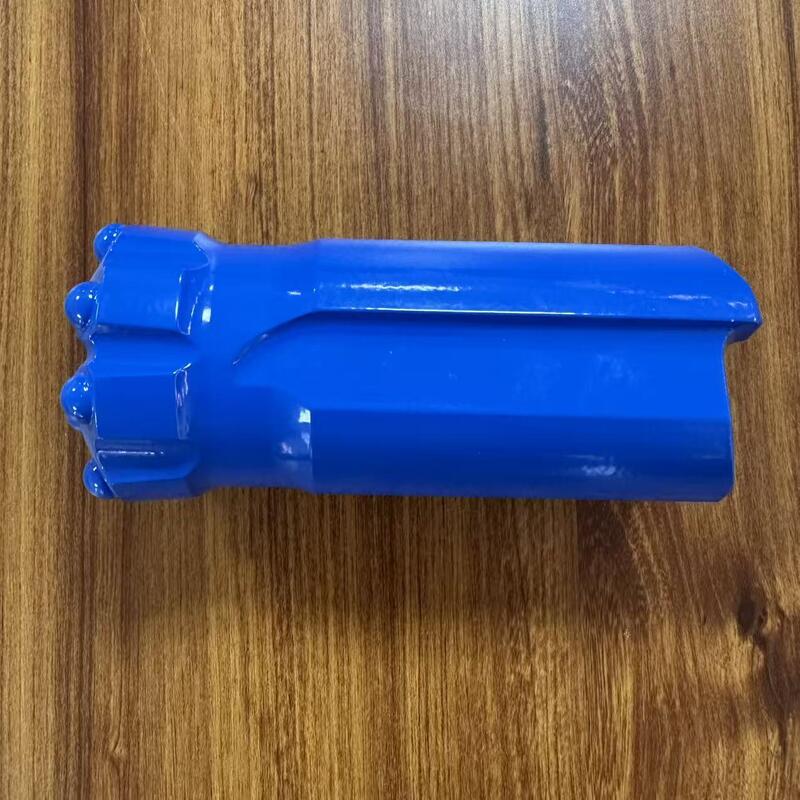

Rock Drilling Tools Threaded Retractable Drill Bit
This is a special rock drilling tool equipped with a standard threaded connection and a retractable design. It consists of tungsten carbide buttons and a heat-treated alloy steel body, and is mainly used for rock drilling operations in mining, quarrying and tunneling projects, matching with various threaded rock drilling equipment.
Rock Drilling Tools Specification
| Color | Black,Yellow,Blue,Red,Golden |
| Length | Customized |
|
Model of thread |
R28,R35,T38,T45 |
| Model of alloy | Round,Conical,Parabolic |
Rock Drilling Tools Product Feature 1. Special easy-retraction structure design with relief chamfers on the bit body, reducing withdrawal resistance and
preventing bit sticking.
2. Standard threaded connection for tight matching with drilling equipment, convenient for installation and disassembly.

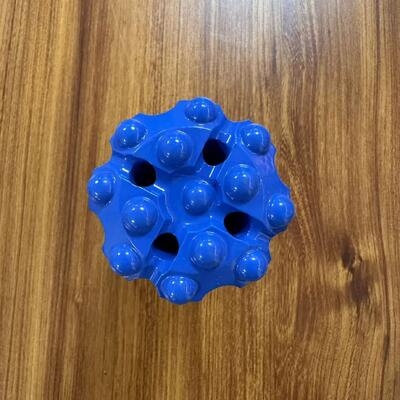

3. Reasonable arrangement of carbide buttons ensures stable rock breaking and regular borehole forming.
4. The bit body is integrally heat-treated for high impact resistance and wear resistance, adapting to complex rock formation operations.
The retractable threaded drill bit is designed with a special profile and matching thread structure. It performs normal impact rock breaking during drilling. When retracting, its chamfered and relieved shape greatly reduces jamming and friction with the borehole wall, allowing the bit to be pulled out easily and avoiding bit sticking.
