T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling

T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling
T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling

大画像 :  T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling

商品の詳細:
起源の場所: 中国
ブランド名: MTH
証明: ISO 9001
モデル番号: 102mm
お支払配送条件:
最小注文数量: 100個のPC
価格: 交渉可能
パッケージの詳細: 木製のケース
受渡し時間: 10〜15日
支払条件: ウエスタンユニオン、マネーグラム、t/t
供給の能力: 月に3000個

T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling

説明
製品名: スレッドドリルビット 材料: 炭化タングステンの&鋼鉄
処理型: 鍛造、キャスト マシンタイプ: 掘削ツール、掘削装置
色: ブルー、ゴールド、カスタマイズされた アプリケーション: 岩石掘削,鉱山,ベンチ掘削,岩石掘削
アドバンテージ: 耐磨性高 性能高 高効率 糸: T38、T51、T45
ハイライト:

T51 threaded button bit

,

102mm tunneling button bit

,

thread extension rod button bit

T51 102mm Button Bits for Thread Extension Rod
Premium Threaded Button Drilling Bits for Tunneling
Our thread button drill bits are manufactured from high-quality alloy steel bar and tungsten carbides. Through precise heat treatment, these drilling tools achieve exceptional toughness to meet demanding rock drilling applications while minimizing energy loss during operation.
Key Features
  • Customizable designs available for various drilling applications
  • Suitable for soft rock, loose-medium rock, and hard rock drilling
  • Compatible with multiple thread types: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
  • Ideal for hard rock drilling (f=8~18)
  • Manufactured from premium 42CrMo alloy steel
  • Features YK05 carbide tips for enhanced durability
  • Available in hot-pressing or welding technology options
Ordering Information
Please confirm these specifications before ordering:
  • Thread Type
  • Standard or Retrac configuration
  • Button shape (Spherical or Ballistic)
  • Bit face shape (Drop Center, Flat Face, Convex, Concave, etc.)
Technical Specifications
R32 Thread Button Bits
Name Diameter (mm) Tip Size (mm) Flushing Holes
R32 thread button bits 41 4*9 (front), 2*8 (side) 1 front, 1 side
43 4*9 (front), 2*9 (side) 1 front, 1 side
45 4*10 (front), 2*9 (side) 1 front, 1 side
R32 Retrac thread button bits 60 6*9 (front), 4*8 (side) 0 front, 3 side
64 6*9 (front), 4*9 (side) 0 front, 3 side
70 6*10 (front), 4*10 (side) 0 front, 3 side
T38 Thread Button Bits
Name Diameter (mm) Tip Size (mm) Flushing Holes
T38 thread button bits 57 5*11 (front), 3*10 (side) 1 front, 1 side
64 5*12 (front), 3*11 (side) 1 front, 1 side
76 5*14 (front), 3*12 (side) 1 front, 2 side
T38 Retrac thread button bits 60 8*9 (front), 3*9 (side) 2 front, 2 side
64 8*9 (front), 4*9 (side) 2 front, 2 side
70 8*10 (front), 4*10 (side) 2 front, 2 side
76 8*11 (front), 4*10 (side) 2 front, 2 side
89 8*12 (front), 5*12 (side) 2 front, 2 side
T45 Thread Button Bits
Name Diameter (mm) Tip Size (mm) Flushing Holes
T45 thread button bits 70 6*11 (front), 4*10 (side) 0 front, 2 side
76 6*13 (front), 4*10 (side) 0 front, 2 side
89 8*12 (front), 5*12 (side) 2 front, 2 side
102 8*13 (front), 6*12 (side) 2 front, 2 side
115 8*14 (front), 6*13 (side) 2 front, 2 side
T51 Thread Button Bits
Name Diameter (mm) Tip Size (mm) Flushing Holes
T51 thread button bits 89 8*12 (front), 5*12 (side) 2 front, 2 side
102 8*13 (front), 6*12 (side) 2 front, 2 side
115 8*14 (front), 6*13 (side) 2 front, 2 side
127 8*14 (front), 6*14 (side) 2 front, 2 side
T51 Retrac thread button bits 89 8*11 (front), 5*12 (side) 2 front, 2 side
102 8*11 (front), 6*12 (side) 2 front, 2 side
115 8*12 (front), 6*13 (side) 2 front, 2 side
127 8*12 (front), 6*14 (side) 2 front, 2 side
Product Images

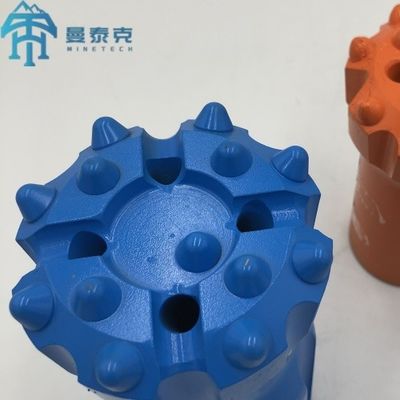

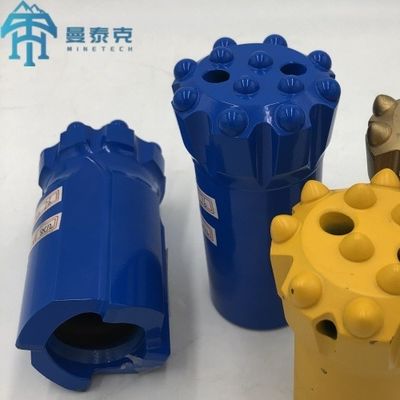

T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling 0 T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling 1 T51 102mm Thread Button Bit with YK05 Carbide Tips for Thread Extension Rod and Tunneling 2
