商品の詳細:
|
| 製品名: | 摩擦ボルト | 耐食性: | 高い |
|---|---|---|---|
| アプリケーション: | 鉱山,トンネル,建設など | 設置方法: | 掘削とグラウト |
| サイズ: | さまざまなサイズが利用可能です | 抗張力: | 材料およびサイズによって決まる |
| 長さ: | カスタマイズ可能 | 材料: | 鋼鉄 |
| ハイライト: | Mining Rock Friction Bolts,Customizable Friction Bolts,Hot Dip Galvanized Friction Bolts |
||
Friction Rock Bolt Anchor Support Mining Rock Friction Bolts Mining Rock Bolts For Mine Tunnel split set Rockbolts

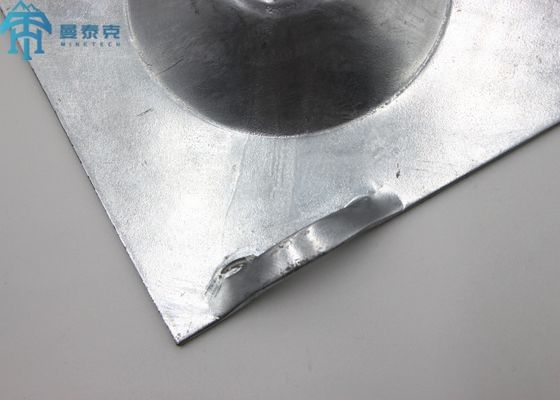

The friction stabilizer bolt is a new type of anchor of full-length anchoring and active reinforcement of surrounding rock. It is composed of an anchor rod and tray.

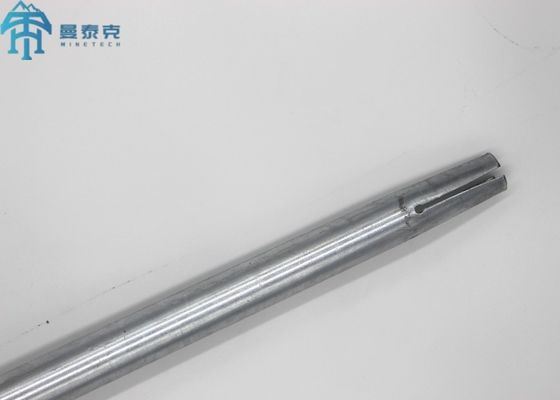

The anchor rod is made of high-strength steel pipe and has longitudinal slits. When it is installed in a borehole slightly smaller than the pipe diameter, it can immediately apply radial pressure to the borehole through the entire length and prevent the surrounding rock from sliding down. Coupled with the supporting force of the tray, the surrounding rock is in a three-direction stress state to achieve rock stability.
The raw material is high-strength alloy strip steel, with options including Q235, 16Mn, 20Mn and other materials.
The width and thickness of the steel can be customized to meet your specific requirements for bolt diameter and pipe thickness.
